90-MXBMV0-A0UAYZ
4710483943829
ASROCK
AM5
AMD B650
Micro ATX
4x DIMM, največ do 7200+MT/s (OC), do 256GB, DDR5
CPU:
1x PCIe 4.0 x16 Slot (PCIE1), podpira x16
1x PCIe 3.0 x16 Slot (PCIE2), supports x4
Chipset:
1x M.2 Socket (Key E), 2230 WiFi/BT PCIe WiFi modul
CPU:
1x Blazing M.2 Socket (M2_1, Key M), podpira 2260/2280 PCIe Gen5x4 (128 Gb/s)
Chipset:
1x Hyper M.2 Socket (M2_2, Key M), podpira 2260/2280 PCIe Gen4x4 (64 Gb/s)
1x M.2 Socket (M2_3, Key M), podpira 2260/2280 PCIe Gen4x2 (32 Gb/s)
4x SATA3 6.0 Gb/s
7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Dragon RTL8125BG
2x antena točka za namestitev

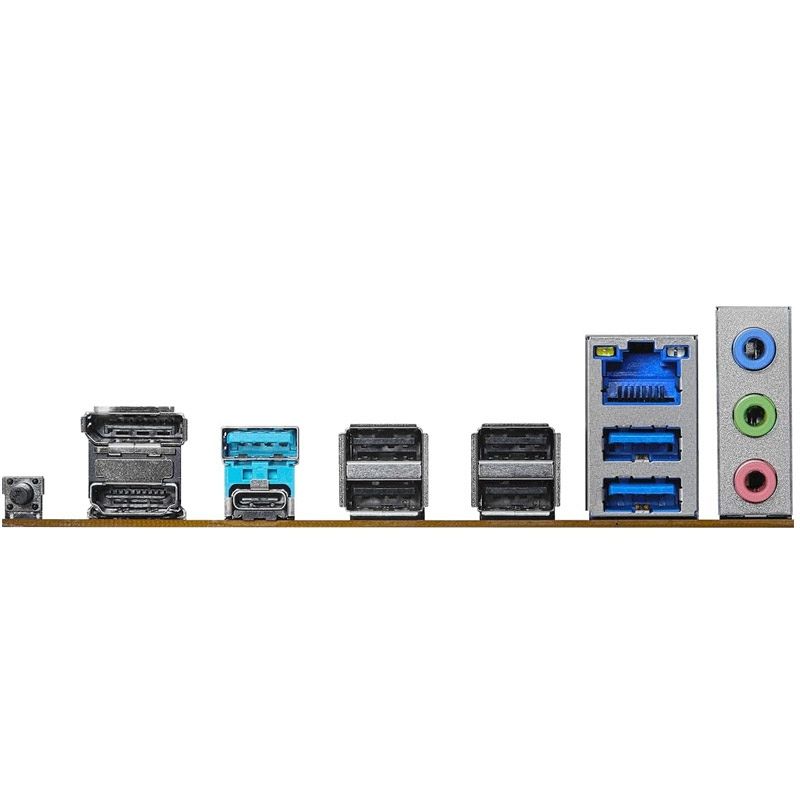

1x HDMI
1x DisplayPort 1.4
1x USB 3.2 Gen2 Type-A (10 Gb/s)
1x USB 3.2 Gen2 Type-C (10 Gb/s)
2x USB 3.2 Gen1 Type-A
4x USB 2.0
1x RJ-45 LAN
1x BIOS Flashback gumb
HD Audio Jacks: Line in / sprednji zvočnik / mikrofon
1x SPI TPM
1x Power LED in zvočnik glava
1x RGB LED
3x Addressable LED Headers
1x CPU ventilator (4-pin)
1x CPU/vodna pumpa ventilator (4-pin) (Smart Fan Speed Control)
3x Chassis/vodna pumpa ventilator (4-pin) (Smart Fan Speed Control)
1x 24 pin ATX
1x 8 pin 12V
1x Front Panel Audio
1x Thunderbolt AIC Connector (5-pin) (podpira ASRock Thunderbolt 4 AIC Card)
2x USB 2.0 (podpira 4 USB 2.0)
2x USB 3.2 Gen1 (podpira 4 USB 3.2 Gen1)
1x Front Panel Type C USB 3.2 Gen1
24 mesecev
