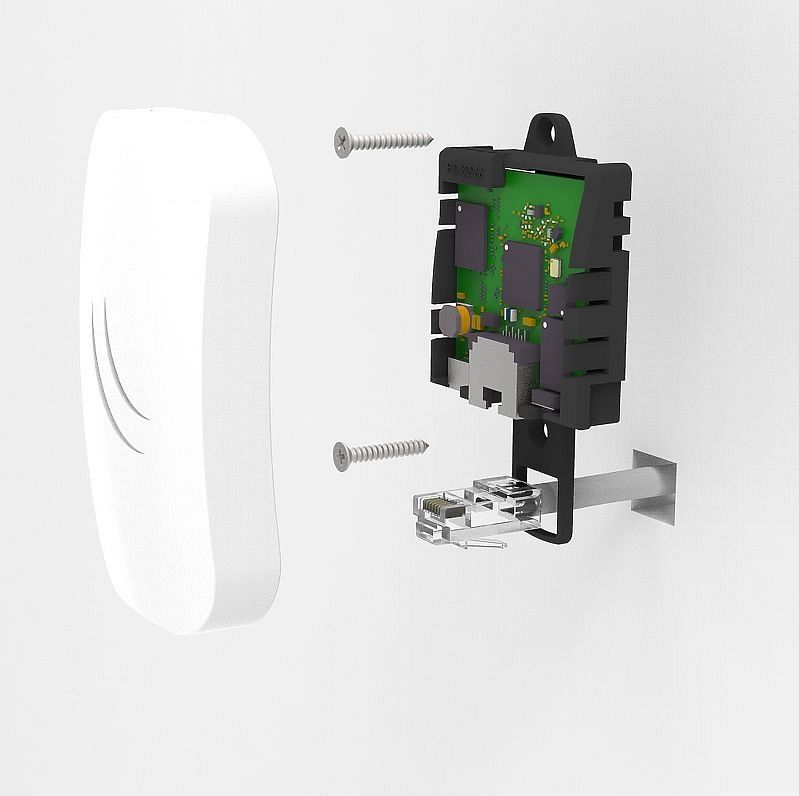

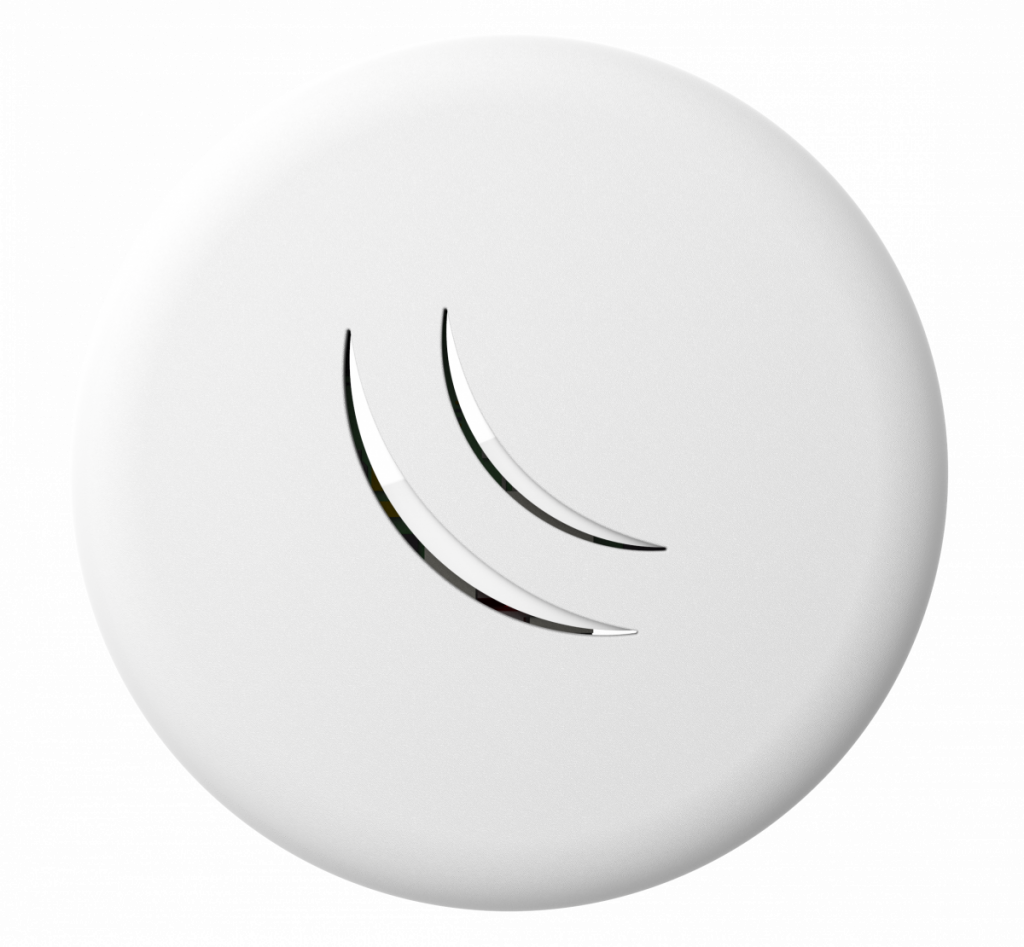

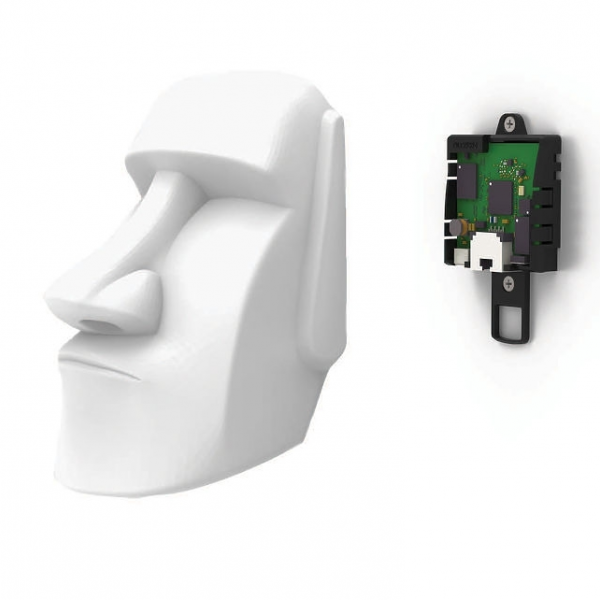

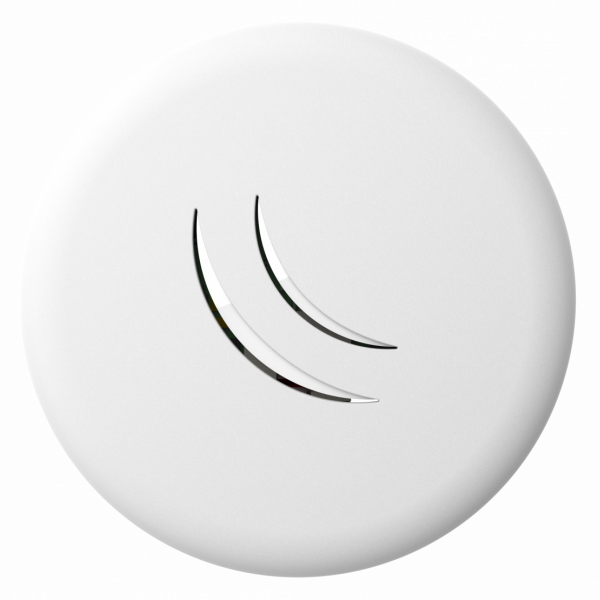

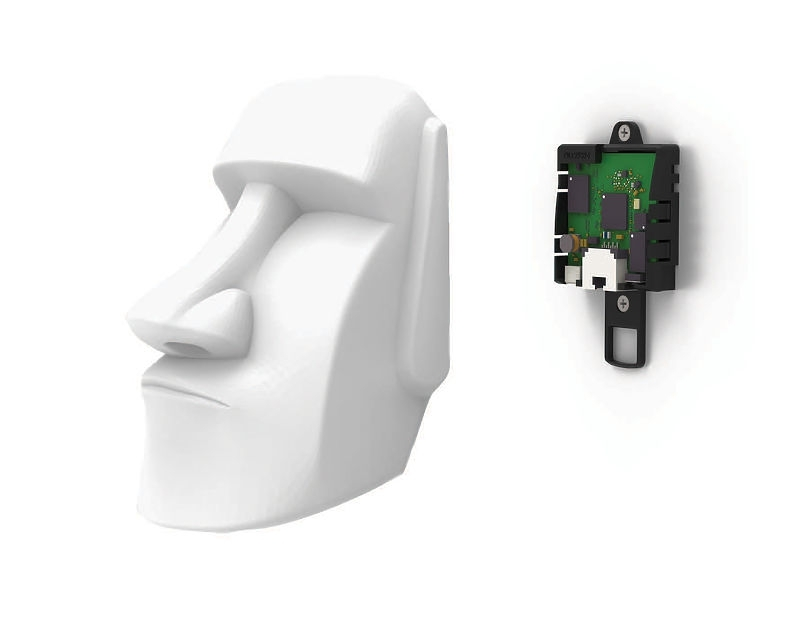

CAP lite je drobna naprava za dostopne točke, ki je kot nalašč za javne lokacije in gostinstvo, kot so hoteli, letališča, nakupovalni centri itd. V izdelku sta dve različni ohišji, ki ju je mogoče enostavno zamenjati ali, če resnično želite Prilagodite dizajn okolju, ponujamo 3D tiskalnikom prijazne oblikovalske datoteke.
CAP lite podpira 802.11b / g / n in se lahko napaja z ethernetom. Popoln spremljevalec za MikroTik CAPsMAN (upravljani sistemski upravljavec AP), ki vam omogoča upravljanje vseh naprav AP z enega osrednjega mesta. CAP lite se lahko uporablja tudi kot samostojna dostopna točka s celotnim potencialom RouterOS-a.
Specifications
| Details |
|---|
| Product code |
RBcAPL-2nD |
| Architecture |
MIPSBE |
| CPU |
QCA9533 |
| CPU core count |
1 |
| CPU nominal frequency |
650 MHz |
| Dimensions |
Wall case: 88 x 52 x 20 mm Ceiling case: ⌀88 mm x 20 mm |
| RouterOS license |
4 |
| Operating System |
RouterOS |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| MTBF |
Approximately 100'000 hours at 25C |
| Tested ambient temperature |
-40°C to 70°C |
| Suggested price |
$29.00 |
Wireless capabilities
| Details |
|---|
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
1.5 |
| Wireless 2.4 GHz chip model |
QCA9533 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
Ethernet
| Details |
|---|
| 10/100 Ethernet ports |
1 |
Peripherals
| Details |
|---|
| Number of USB ports |
1 |
| USB slot type |
microUSB type AB |
| Max USB current (A) |
1 |
Powering
| Details |
|---|
| MicroUSB input Voltage |
5-5 V |
| Number of DC inputs |
2 (PoE-IN, MicroUSB) |
| Max power consumption |
4 W |
| FAN count |
Passive |
| PoE in |
802.3af/at |
| PoE in input Voltage |
10-60 V |
Certification & Approvals
| Details |
|---|
| Certification |
CE, FCC, IC, EAC, ROHS |
| IP |
IP20 |
Spletna stran izdelka: https://mikrotik.com/product/RBcAPL-2nD-307
