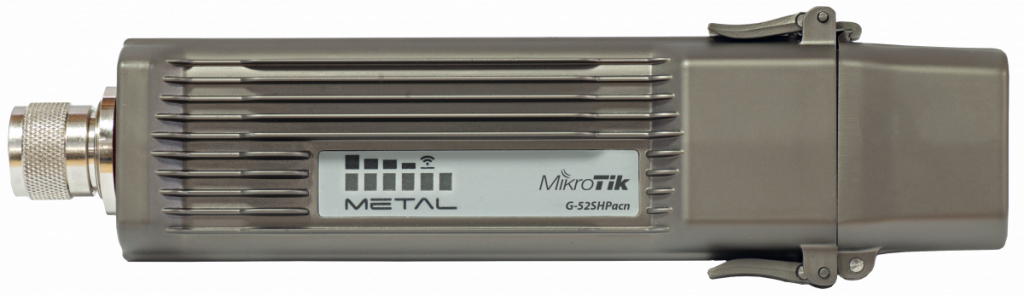

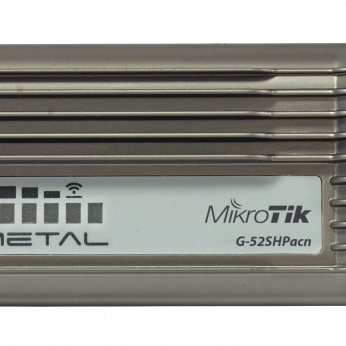

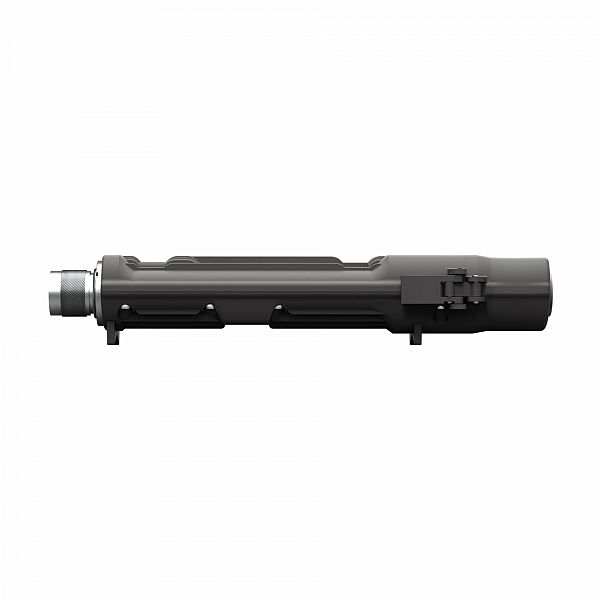

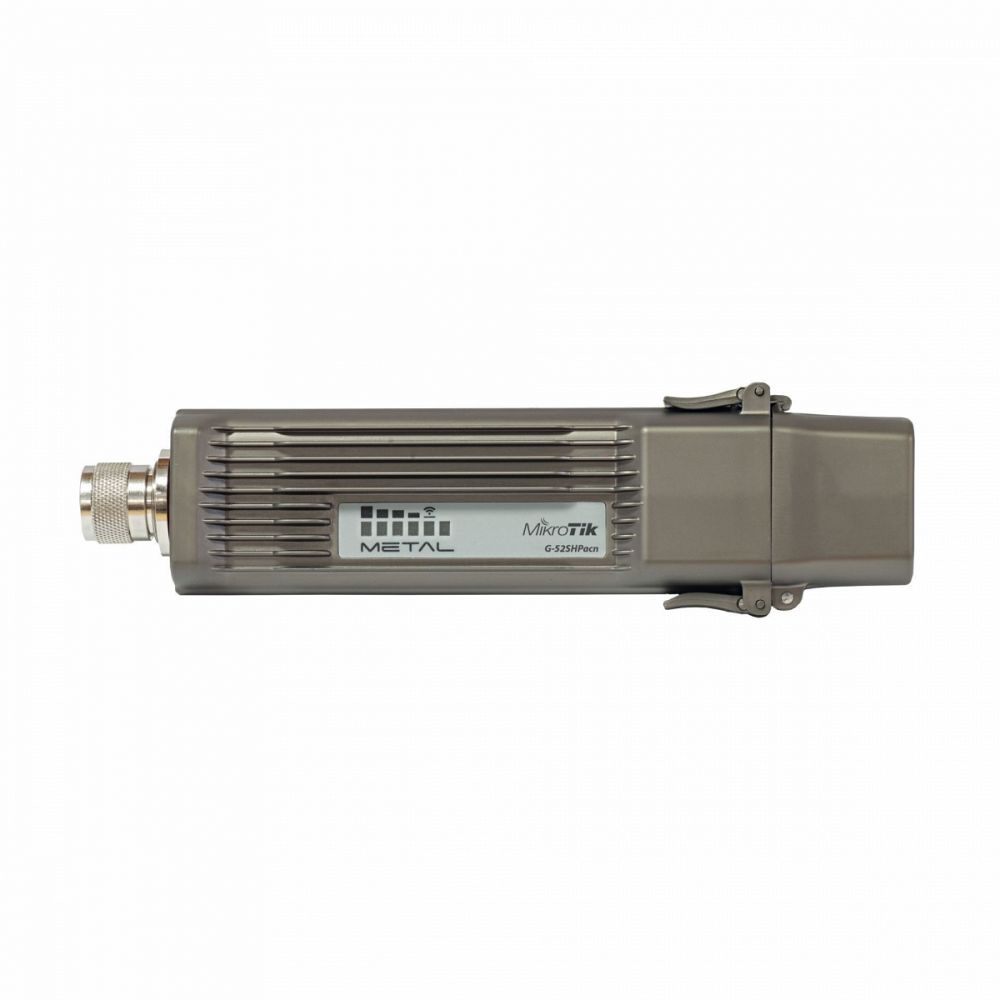

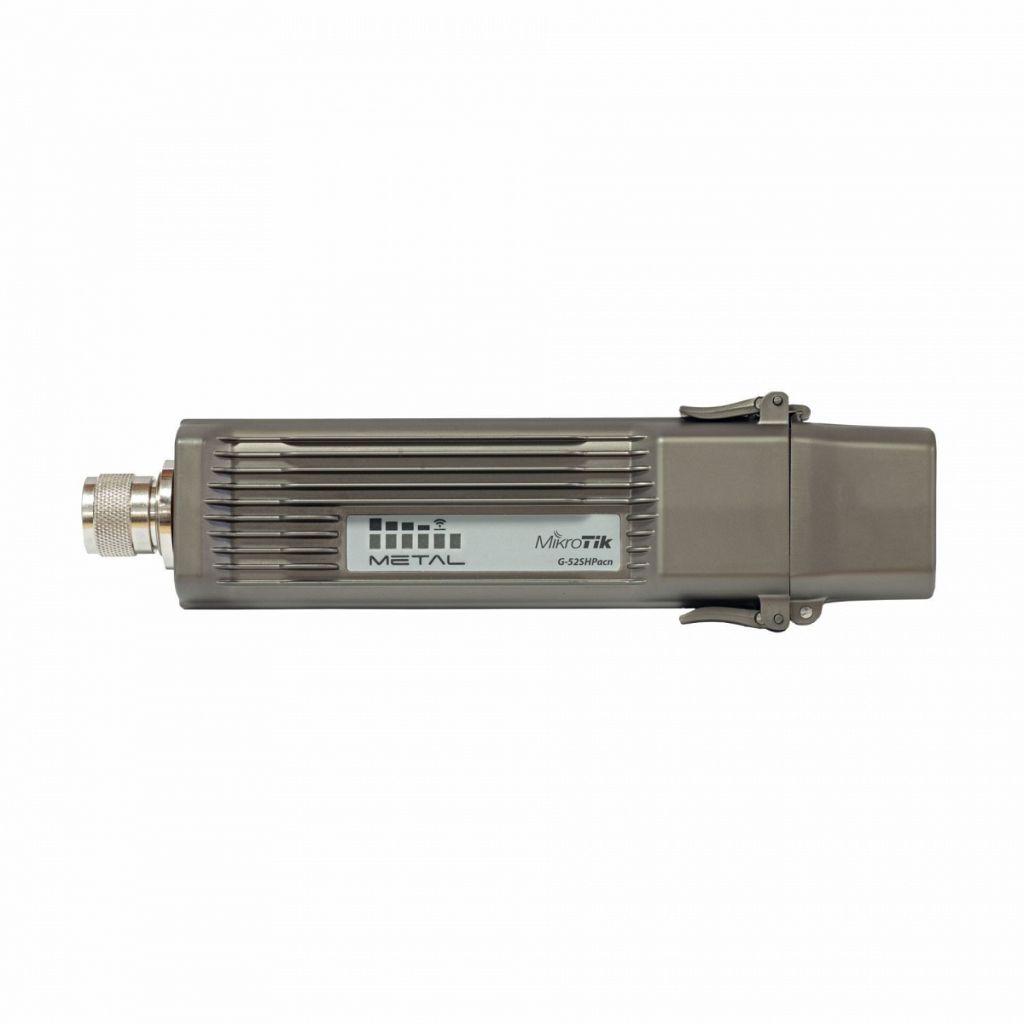

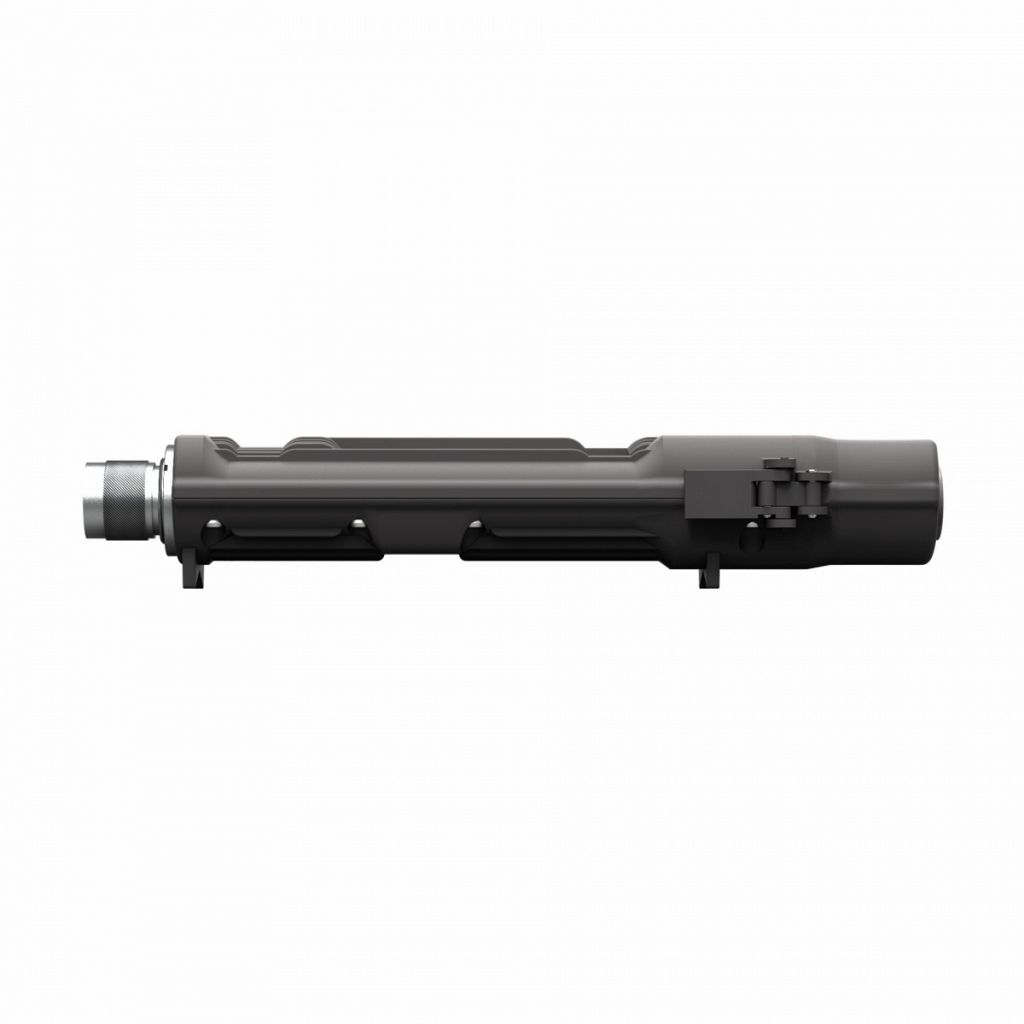

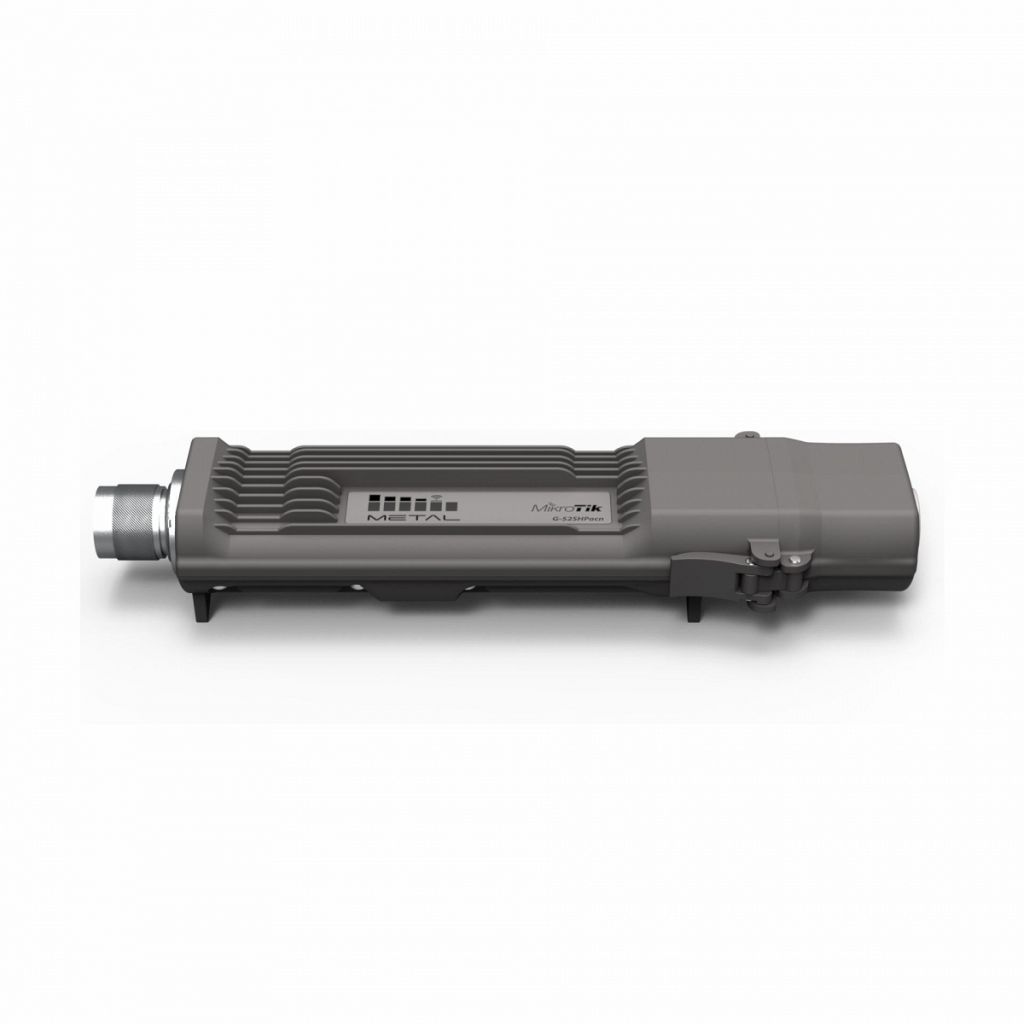

Mikrotik Metal 52ac je zunanja brezžična dostopna točka z gigabitnim mrežnim priključkom v kovinskem ohišju, ki omogoča učinkovito hlajenje in zaščito pred zunanjimi vplivi okolja.
Lahko deluje na 2.4GHz ali 5GHz frekvenčnem pasu. Metal 52ac model že vsebuje Level 4 licenco ki omogoča da deluje kot dostopna ali mostovna točka.

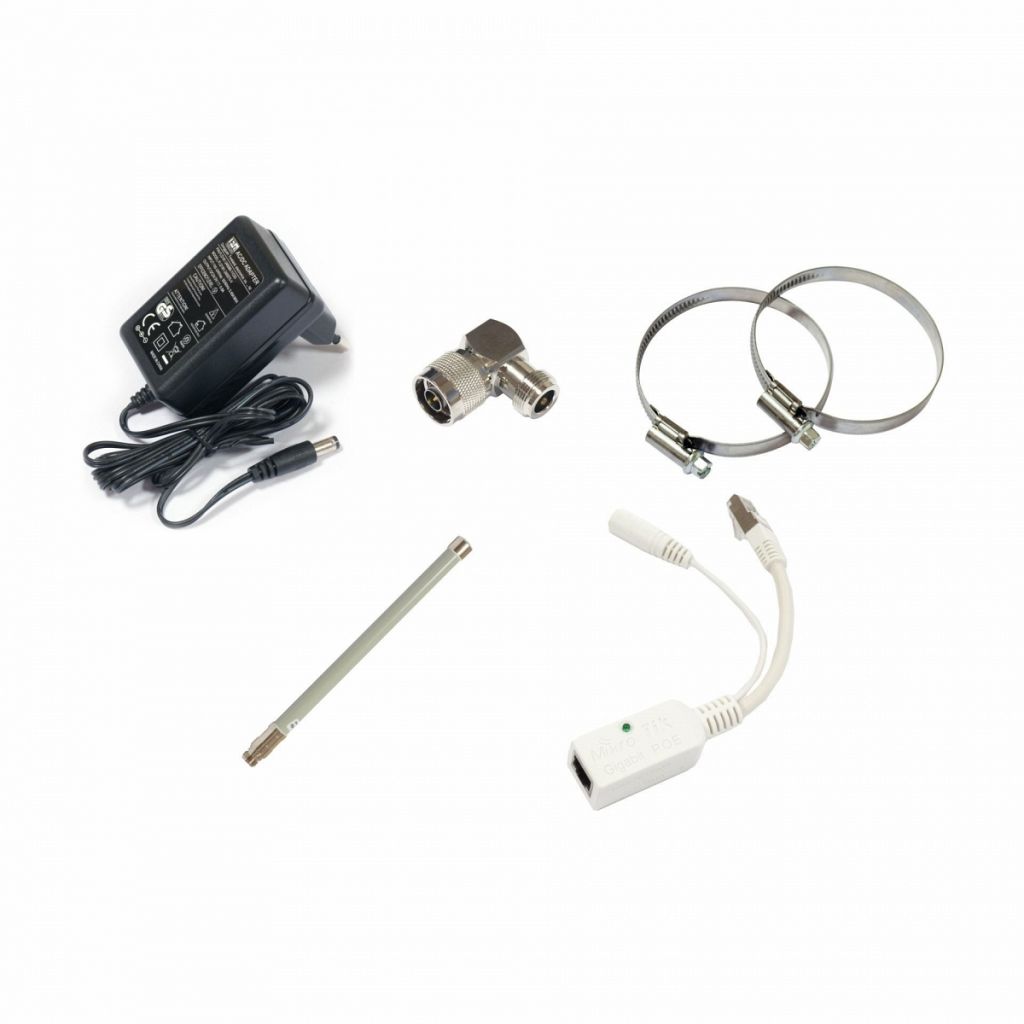

Uporablja oddajnik z močjo 1300mW TX na katerega lahko prikjučite priloženo DualBand Omni anteno (6dBi 2.4GHz, 8dBi 5GHz) ali pa uporabite svojo (z moškim N priključkom).
| Specifikacije | ||
| Details | ||
| Product code | RBMetalG-52SHPacn | |
| Architecture | MIPSBE | |
| CPU | QCA9556 | |
| CPU core count | 1 | |
| CPU nominal frequency | 720 MHz | |
| Dimensions | 215x60x38mm | |
| RouterOS license | 4 | |
| Operating System | RouterOS | |
| Size of RAM | 64 MB | |
| Storage size | 16 MB | |
| Storage type | FLASH | |
| MTBF | Approximately 200'000 hours at 25C | |
| Tested ambient temperature | -40°C to 70°C | |
| Powering | ||
| Details | ||
| Number of DC inputs | 1 (PoE-IN) | |
| Max power consumption | 11 W | |
| FAN count | Passive | |
| PoE in | Passive PoE | |
| PoE in input Voltage | 10-30 V | |
| Wireless specifications | ||
| Details | ||
| Wireless 2.4 GHz/5 GHz Max data rate | 433 Mbit/s | |
| Wireless 2.4 GHz/5 GHz number of chains | 1 | |
| Wireless 2.4 GHz/5 GHz standards | 802.11a/n/ac, 802.11b/g/n | |
| Antenna gain dBi for 2.4 GHz/5 GHz | 6 | |
| Wireless 2.4 GHz/5 GHz chip model | QCA9889 | |
| Wireless 2.4 GHz/5 GHz generation | Wi-Fi 5 | |
| Ethernet | ||
| Details | ||
| 10/100/1000 Ethernet ports | 1 | |
| Other | ||
| Details | ||
| PCB temperature monitor | Yes | |
| Voltage Monitor | Yes | |
| Certification & Approvals | ||
| Details | ||
| Certification | CE, FCC, IC, EAC, ROHS | |
| IP | IP55 | |
| Wireless specifications | ||
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
| 6MBit/s | 31 | -93 |
| 54MBit/s | 27 | -78 |
| MCS0 | 30 | -93 |
| MCS7 | 26 | -74 |
| MCS9 | 22 | -69 |
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
| 1MBit/s | 31 | -97 |
| 11MBit/s | 31 | -91 |
| 6MBit/s | 31 | -93 |
| 54MBit/s | 28 | -77 |
| MCS0 | 31 | -93 |
| MCS7 | 27 | -72 |
Spletna stran izdelka: https://mikrotik.com/product/RBMetalG-52SHPacn#fndtn-specifications
