TP-LINK AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

Proizvajalčeva koda

ARCHER TX3000E

Proizvajalčeva koda

ARCHER TX3000E

EAN koda

6935364088897

EAN koda

6935364088897

Proizvajalec

TP-LINK

Proizvajalec

TP-LINK

Standard

Wi-Fi 6, Bluetooth 5.0

Standard

Wi-Fi 6, Bluetooth 5.0

Garancija

36 mesecev

Garancija

36 mesecev

razprodaja

No

razprodaja

No

Povezava kartice/adapterja

brezžična

Povezava kartice/adapterja

brezžična

Dodatne lastnosti kartic/adapterja

Bluetooth, Dual Band, priklopna postaja, zunanja antena

Dodatne lastnosti kartic/adapterja

Bluetooth, Dual Band, priklopna postaja, zunanja antena

Priklop kartice/adapterja

PCI express

Priklop kartice/adapterja

PCI express

Tip mrežne kartice/adapterja

IEEE 802.11ax WiFi6

Tip mrežne kartice/adapterja

IEEE 802.11ax WiFi6

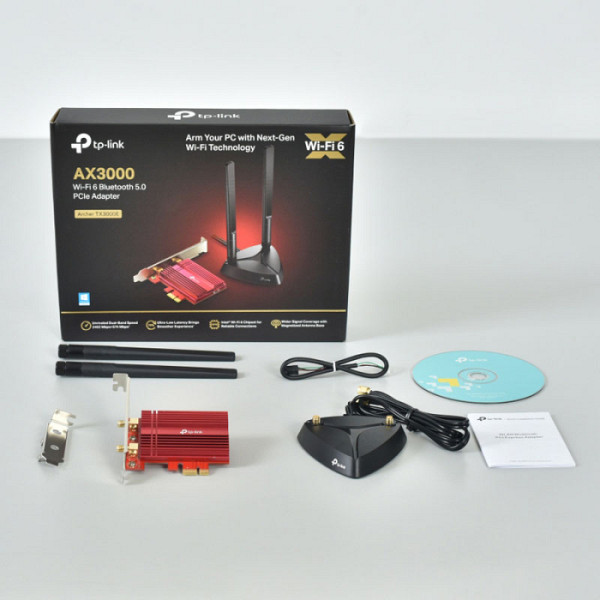

Vsebina paketa

Archer TX3000E
magnetizirana osnova antene z 1 m RF kablom
2x 5 dBi High Gain anteni
konzola z nizkim profilom
Bluetooth Header kabel

Vsebina paketa

Archer TX3000E
magnetizirana osnova antene z 1 m RF kablom
2x 5 dBi High Gain anteni
konzola z nizkim profilom
Bluetooth Header kabel

Dodatno

dimenzija: 95,2 x 120,8 x 21,5 mm
tip antene: 2x high gain Dual band antena, magnetna podlaga antene
nabor čipov: Intel Wi-Fi 6

BREZŽIČNI STANDARD
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/g/b 2.4 GHz
Bluetooth 5.0/4.2/4.0

WLAN Signal Rate:
5 GHz
11ax: Up to 2402 Mbps (dynamic)
11ac: Up to 1733 Mbps (dynamic)
11n: Up to 300 Mbps (dynamic)
11a: Up to 54 Mbps (dynamic)

2.4 GHz
11ax: Up to 574 Mbps (dynamic)
11n: Up to 300 Mbps (dynamic)
11g: Up to 54 Mbps (dynamic)
11b: Up to 11 Mbps (dynamic)

WLAN Reception Sensitivity:
5 GHz :
11ax HT160:-56.25dBm
11ax HT80: -59dBm
11ax HT40: -62.25dBm
11ax HT20: -65dBm

11ac HT160:-62dBm
11ac HT80: -65.5dBm
11ac HT40: -69.75dBm
11ac HT20: -73.75dBm
11n HT40: -74.5dBm
11n HT20: -77.5dBm
11a 54Mbps: -77.75dBm
11a 6Mbps: -94.5dBm

2.4GHz :
11ax HT40: -60.75dBm
11ax HT20: -63.75dBm
11n HT40: -73dBm
11n HT20: -76.25dBm
11g 54Mbps: -76.5dBm
11b 11Mbps: -89dBm

WLAN Transmit Power
5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)
2.4 GHz : 26dBm(FCC) / 20dBm(CE) (EIRP)

brezžična varnost: Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x
Bluetooth profili: Archer TX3000E podpira domače BT profile, implementirane v sistemu Windows 10. Za najnovejše informacije o Windows 10 BT profilih glejte https://support.microsoft.com/en-us/help/10568/windows-10-supported-bluetooth-profiles

Dodatno

dimenzija: 95,2 x 120,8 x 21,5 mm
tip antene: 2x high gain Dual band antena, magnetna podlaga antene
nabor čipov: Intel Wi-Fi 6

BREZŽIČNI STANDARD
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/g/b 2.4 GHz
Bluetooth 5.0/4.2/4.0

WLAN Signal Rate:
5 GHz
11ax: Up to 2402 Mbps (dynamic)
11ac: Up to 1733 Mbps (dynamic)
11n: Up to 300 Mbps (dynamic)
11a: Up to 54 Mbps (dynamic)

2.4 GHz
11ax: Up to 574 Mbps (dynamic)
11n: Up to 300 Mbps (dynamic)
11g: Up to 54 Mbps (dynamic)
11b: Up to 11 Mbps (dynamic)

WLAN Reception Sensitivity:
5 GHz :
11ax HT160:-56.25dBm
11ax HT80: -59dBm
11ax HT40: -62.25dBm
11ax HT20: -65dBm

11ac HT160:-62dBm
11ac HT80: -65.5dBm
11ac HT40: -69.75dBm
11ac HT20: -73.75dBm
11n HT40: -74.5dBm
11n HT20: -77.5dBm
11a 54Mbps: -77.75dBm
11a 6Mbps: -94.5dBm

2.4GHz :
11ax HT40: -60.75dBm
11ax HT20: -63.75dBm
11n HT40: -73dBm
11n HT20: -76.25dBm
11g 54Mbps: -76.5dBm
11b 11Mbps: -89dBm

WLAN Transmit Power
5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)
2.4 GHz : 26dBm(FCC) / 20dBm(CE) (EIRP)

brezžična varnost: Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x
Bluetooth profili: Archer TX3000E podpira domače BT profile, implementirane v sistemu Windows 10. Za najnovejše informacije o Windows 10 BT profilih glejte https://support.microsoft.com/en-us/help/10568/windows-10-supported-bluetooth-profiles

11ax

do 2402 Mbps (dinamično)

11ax

do 2402 Mbps (dinamično)

11ac

do 1733 Mbps (dinamično)

11ac

do 1733 Mbps (dinamično)

11n

do 300 Mbps (dinamično)

11n

do 300 Mbps (dinamično)

11a

do 54 Mbps (dinamično)

11a

do 54 Mbps (dinamično)

11g

do 54 Mbps (dinamično)

11g

do 54 Mbps (dinamično)

11b

do 11 Mbps (dinamično)

11b

do 11 Mbps (dinamično)

11ax ht160

-56,25 d

11ax ht160

-56,25 d

11ax ht80

-59d

11ax ht80

-59d

11ax ht40

-62,25 d

11ax ht40

-62,25 d

11ax ht20

-65d

11ax ht20

-65d

11ac ht160

-62d

11ac ht160

-62d

11ac ht80

-65,5 d

11ac ht80

-65,5 d

11ac ht40

-69,75 d

11ac ht40

-69,75 d

11ac ht20

-73,75 d

11ac ht20

-73,75 d

11n ht40

-74,5 d

11n ht40

-74,5 d

11n ht20

-77,5 d

11n ht20

-77,5 d

11a 54 mbps

-77,75 d

11a 54 mbps

-77,75 d

mbps

-94,5d

mbps

-94,5d

oddajna moč wlan 5 ghz

28d

oddajna moč wlan 5 ghz

28d

2,4 ghz

24 d

2,4 ghz

24 d

delovna temperatura okolja

0℃~40℃ (32℉ ~104℉)

delovna temperatura okolja

0℃~40℃ (32℉ ~104℉)

delovna vlažnost

10%~90% brez kondenzacije

delovna vlažnost

10%~90% brez kondenzacije

vlažnost pri shranjevanju

5%~90% brez kondenzacije

vlažnost pri shranjevanju

5%~90% brez kondenzacije

uradna stran proizvajalca

https://www.tp-link.com/us/home-networking/pci-adapter/archer-tx3000e/#overview

uradna stran proizvajalca

https://www.tp-link.com/us/home-networking/pci-adapter/archer-tx3000e/#overview
