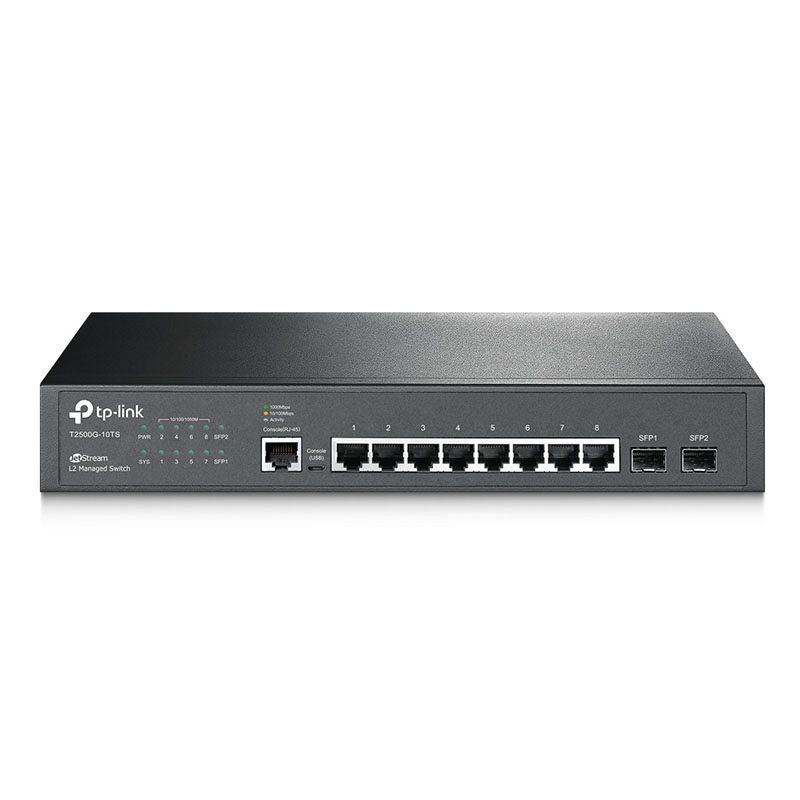

TP-LINK JetStream gigabit L2 managed stikalo TL-SG3210 V3 ponuja 8 gigabitnih RJ45 portov in 2 SFP gigabitna porta. Narejen je za delovne skupine in oddelke ter ponuja poln nabor Layer 2 management funkcij. Ponuja najvišjo prepustnost kjer to potrebujete, kot visokozmogljiv center delovne skupine ali glavno stikalo za več gigabitnih stikal. Za največjo fkelsibilnost lahko vgradite SFP modula.
- gigabitne Ethernet povezave
- izbirni RH45 konzolni port in Micro-USB konzolni port
- napredne varnostne funkcije IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X in Radius Authentication omogočajo robustno zaščito
- L2/L3/L4 QoS in IGMP snooping za optimizacijo glasovnih in video aplikacij
- WEB/CLI managed načini, SNMP, RMON in Dual Image prinašajo veliko funkcij upravljanja
TL-SG3210
6935364098490
TP-LINK
namizni
Managed
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
8x gigabit RJ45, 2x Gigabit SFP, 1x RJ45 Console Port, 1 Micro-USB Console Port
No
Prepustnost: 20 Gbps
Število paketov na sekundo: 14,9 Mbps
Quality of Service
Support 802.1p CoS/DSCP priority
Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN
L2 Features
IGMP Snooping v1/v2/v3
MLD v1/v2 Snooping
802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
Port isolation
BPDU filtering/guard
TC/Root protect
Loop back detection
802.3x Flow Control
LLDP/LLDP-MED
DHCP VLAN Relay
L2PT
VLAN
Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
MAC/Protocol-based VLAN
GARP/GVRP
VLAN VPN (QinQ)
Management VLAN configuration
Access Control List
L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID;
Time Range Based
Security
IP-MAC-Port-VID Binding
AAA
DHCP Snooping
IEEE 802.1X Port/MAC Based authentication, Radius, Guest VLAN
DoS Defend
Dynamic ARP inspection (DAI)
SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown-unicast Storm Control
PPPoE
IPv6
Dual IPv4/IPv6 stack
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 Applications
DHCPv6 Client
Ping6
Tracert6
Telnet(v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP
Management
Web-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
DHCP/BOOTP Client,DHCP Snooping,DHCP Option82
CPU Monitoring
Port Mirroring
Dual Image
Time Setting: SNTP
Integrated NDP/NTDP feature
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
do 8,38 W
294 (Š) x 180 (G) x 44 (V) mm
24 mesecev
stikalo, napajalni kabel, rack nosilci, gumijaste noge
