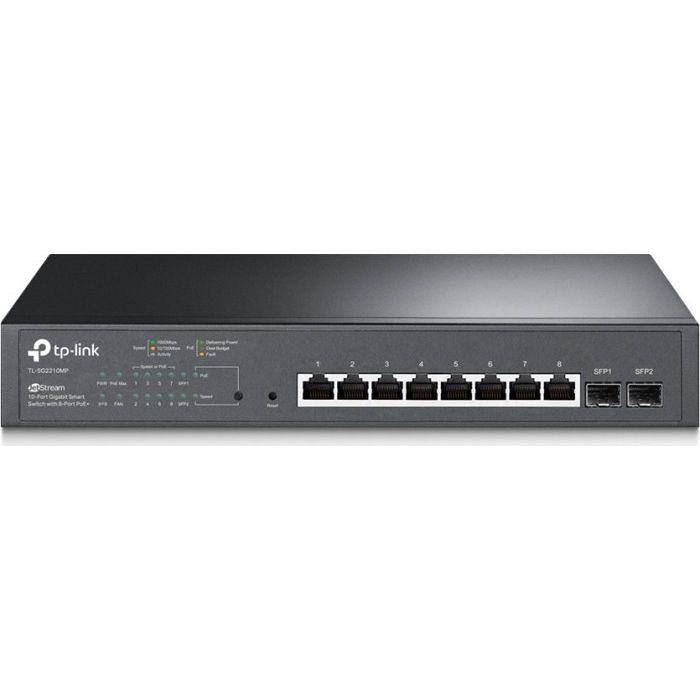

TP-LINK JetStream TL-SG2210MP 10-port 8x Gigabit PoE+ RJ45 2x Gigabit SFP Smart mrežno stikalo switch

TL-SG2210MP JetStream 10-port Gigabit Smart stikalo z 8-port PoE+

150 W PoE proračun: 8x 802.3at/af-združljiva PoE+ vrata s skupno močjo 150 W*.
Popolni gigabitni vmesniki: 8x gigabit PoE+ vrata in 2x gigabit SFP reža zagotavljajo visoke hitrosti povezave.
Vgrajen v Omada SDN: Zero-Touch Provisioning (ZTP), centralizirano upravljanje v oblaku in inteligentno spremljanje.
Centralizirano upravljanje: dostop v oblaku in aplikacija Omada za izjemno udobje in enostavno upravljanje.
Robustne varnostne strategije: vezava vrat IP-MAC, ACL, zaščita vrat, DoS Defend, nadzor nad nevihto, DHCP Snooping, 802.1X, preverjanje pristnosti po radiju in drugo.
Optimizirajte glasovne in video aplikacije: L2/L3/L4 QoS in vohunjenje IGMP

Programsko definirano omrežje (SDN) z dostopom v oblaku

Omadina programsko definirana mreža (SDN) združuje omrežne naprave, vključno z dostopnimi točkami, stikali in prehodi, ki zagotavljajo 100% centralizirano upravljanje v oblaku. Omada ustvarja zelo razširljivo omrež je - vse je nadzorovano iz enega vmesnika. Na voljo so brezhibne brezžične in žične povezave, idealne za uporabo v gostinstvu, izobraževanju, trgovini na drobno, v pisarnah itd.

Proizvajalčeva koda

SG2210MP

Proizvajalčeva koda

SG2210MP

EAN koda

6935364030674

EAN koda

6935364030674

Proizvajalec

TP-LINK

Proizvajalec

TP-LINK

razprodaja

No

razprodaja

No

Namestitev

rack / namizni

Namestitev

rack / namizni

Vrsta stikala

Managed

Vrsta stikala

Managed

Standard

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p

Standard

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p

Vmesniki

8x 10/100/1000 Mbps RJ45, 2x 100/1000 Mbps SFP

Vmesniki

8x 10/100/1000 Mbps RJ45, 2x 100/1000 Mbps SFP

Hitrost

10/100/1000Mbps

Hitrost

10/100/1000Mbps

PoE

8x PoE+ 802.3at/af, do 30W na port, skupno do 150W

PoE

8x PoE+ 802.3at/af, do 30W na port, skupno do 150W

Programske funkcije

Kakovost storitev:
- 802.1p CoS/DSCP priority
- 8 priority queues
- Priority Schedule Mode
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- Queue Weight Config
- Bandwidth Control
- Port/Flow based Rating Limit
- Smoother Performance
- Storm Control
- Multiple Control Modes(kbps/ratio)
- Broadcast/Multicast/Unknown-Unicast Control

L2 in L2+ Lastnosti:
- DHCP Relay
- DHCP VLAN Relay
- DHCP L2 Relay
- Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports per group
- Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter/Protect, Root Protect
- Loopback Detection
- Flow Control
- 802.3x Flow Control
- Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Flow-Based
- Ingress/Egress/Both
- Device Link Detect Protocol (DLDP)
- 802.1ab LLDP/ LLDP-MED

L2 Multicast
- IPv4, IPv6 shared multicast groups (511 groups max.)
- IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- Static Group Config
- Multicast VLAN Registration (MVR)
- Multicast Filtering
- MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Limited IP Multicast (256 profiles and 16 entries per profile)

IPv6 Podpora
- IPv6 Dual IPv4/IPv6
- Multicast Listener Discovery (MLD) Snooping
- IPv6 neighbor discovery (ND)
- Path maximum transmission unit (MTU) discovery
- Internet Control Message Protocol (ICMP) version 6
- TCPv6/UDPv6
- IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP

VLAN
- VLAN Group
- Max. 4K VLAN Groups
- 802.1Q tag VLAN
- MAC VLAN
- Protocol VLAN
- GVRP
- Voice VLAN

Seznam za nadzor dostopa - 230 vnosov
- Time-Range
- Time Slice
- Week Time-Range
- Absolute Time-Range
- Holiday
- Time-based ACL
- MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
- IP ACL
- Source IP
- Destination IP
- IP Protocol
- TCP Flag
- TCP/UDP Source Port
- TCP/UDP Destination Port
- DSCP/IP TOS
- IPv6 ACL
- Combined ACL
- Rule Operation
- Permit/Deny
- Policy Action
- Mirror
- Rate Limit
- Redirect
- QoS Remark
- ACL Rules Binding
- Port Binding
- VLAN Binding
- Actions for flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark

Varnost:
- AAA
- 802.1X
- Port based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Support Radius authentication and accountability
- IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
- IP Source Guard
- 253 Entries
- Source IP+Source MAC
- IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
- DoS Defend
- Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port
- Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
- Port Isolation
- Secure web management through HTTPS with SSLv3/TLS 1.2
- Secure Command Line Interface (CLI)
management with SSHv1/SSHv2
- IP/Port/MAC based access control

MIBs
- MIB II (RFC1213)
- Bridge MIB (RFC1493)
- P/Q-Bridge MIB (RFC2674)
- Radius Accounting Client MIB (RFC2620)
- Radius Authentication Client MIB (RFC2618)
- Remote Ping, Traceroute MIB (RFC2925)
- Support TP-Link private MIBs
- RMON MIB(RFC1757, rmon 1,2,3,9)

Programske funkcije

Kakovost storitev:
- 802.1p CoS/DSCP priority
- 8 priority queues
- Priority Schedule Mode
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- Queue Weight Config
- Bandwidth Control
- Port/Flow based Rating Limit
- Smoother Performance
- Storm Control
- Multiple Control Modes(kbps/ratio)
- Broadcast/Multicast/Unknown-Unicast Control

L2 in L2+ Lastnosti:
- DHCP Relay
- DHCP VLAN Relay
- DHCP L2 Relay
- Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports per group
- Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter/Protect, Root Protect
- Loopback Detection
- Flow Control
- 802.3x Flow Control
- Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Flow-Based
- Ingress/Egress/Both
- Device Link Detect Protocol (DLDP)
- 802.1ab LLDP/ LLDP-MED

L2 Multicast
- IPv4, IPv6 shared multicast groups (511 groups max.)
- IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- Static Group Config
- Multicast VLAN Registration (MVR)
- Multicast Filtering
- MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Limited IP Multicast (256 profiles and 16 entries per profile)

IPv6 Podpora
- IPv6 Dual IPv4/IPv6
- Multicast Listener Discovery (MLD) Snooping
- IPv6 neighbor discovery (ND)
- Path maximum transmission unit (MTU) discovery
- Internet Control Message Protocol (ICMP) version 6
- TCPv6/UDPv6
- IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP

VLAN
- VLAN Group
- Max. 4K VLAN Groups
- 802.1Q tag VLAN
- MAC VLAN
- Protocol VLAN
- GVRP
- Voice VLAN

Seznam za nadzor dostopa - 230 vnosov
- Time-Range
- Time Slice
- Week Time-Range
- Absolute Time-Range
- Holiday
- Time-based ACL
- MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
- IP ACL
- Source IP
- Destination IP
- IP Protocol
- TCP Flag
- TCP/UDP Source Port
- TCP/UDP Destination Port
- DSCP/IP TOS
- IPv6 ACL
- Combined ACL
- Rule Operation
- Permit/Deny
- Policy Action
- Mirror
- Rate Limit
- Redirect
- QoS Remark
- ACL Rules Binding
- Port Binding
- VLAN Binding
- Actions for flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark

Varnost:
- AAA
- 802.1X
- Port based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Support Radius authentication and accountability
- IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
- IP Source Guard
- 253 Entries
- Source IP+Source MAC
- IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
- DoS Defend
- Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port
- Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
- Port Isolation
- Secure web management through HTTPS with SSLv3/TLS 1.2
- Secure Command Line Interface (CLI)
management with SSHv1/SSHv2
- IP/Port/MAC based access control

MIBs
- MIB II (RFC1213)
- Bridge MIB (RFC1493)
- P/Q-Bridge MIB (RFC2674)
- Radius Accounting Client MIB (RFC2620)
- Radius Authentication Client MIB (RFC2618)
- Remote Ping, Traceroute MIB (RFC2925)
- Support TP-Link private MIBs
- RMON MIB(RFC1757, rmon 1,2,3,9)

Dimenzije

294 x 180 x 44 mm

Dimenzije

294 x 180 x 44 mm

Garancija

24 mesecev

Garancija

24 mesecev

Vsebina paketa

Stikalo, napajalni kabel, navodila, rack nosilci, gumijaste nogice

Vsebina paketa

Stikalo, napajalni kabel, navodila, rack nosilci, gumijaste nogice

base-t

UTP/STP category 3, 4, 5 cable (maximum 100m)

base-t

UTP/STP category 3, 4, 5 cable (maximum 100m)

base-fx

MMF, SMF

base-fx

MMF, SMF

base-x

MMF, SMF

base-x

MMF, SMF

e+ ports(rj45) standard

802.3at/af compliant

e+ ports(rj45) standard

802.3at/af compliant

e+ ports

8 Ports

e+ ports

8 Ports

power supply

150 W

power supply

150 W

- stp security

TC Protect, BPDU Filter/Protect,

- stp security

TC Protect, BPDU Filter/Protect,

mac vlan

12 Entries

mac vlan

12 Entries

environment operating temperature

0 50 ℃ (32 122 ℉);

environment operating temperature

0 50 ℃ (32 122 ℉);

storage temperature

-40 70 ℃ (-40 158 ℉)

storage temperature

-40 70 ℃ (-40 158 ℉)

operating humidity

10 90% RH non-condensing

operating humidity

10 90% RH non-condensing

storage humidity

5 90% RH non-condensing

storage humidity

5 90% RH non-condensing

uradna stran proizvajalca

https://www.tp-link.com/en/business-networking/poe-switch/tl-sg2210mp/

uradna stran proizvajalca

https://www.tp-link.com/en/business-networking/poe-switch/tl-sg2210mp/
