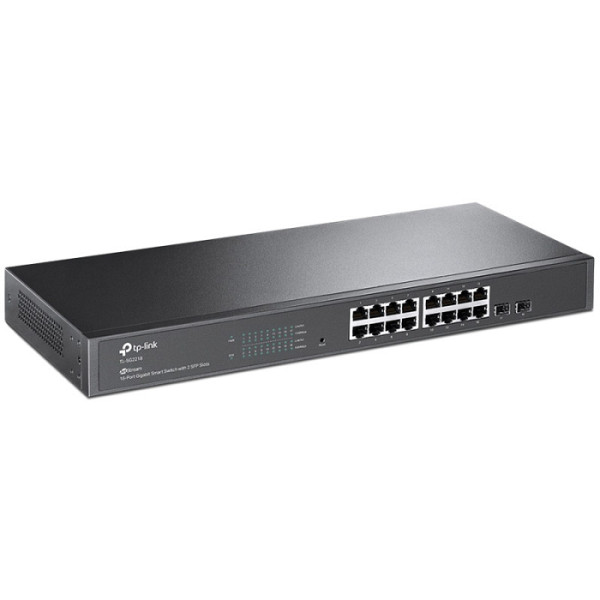

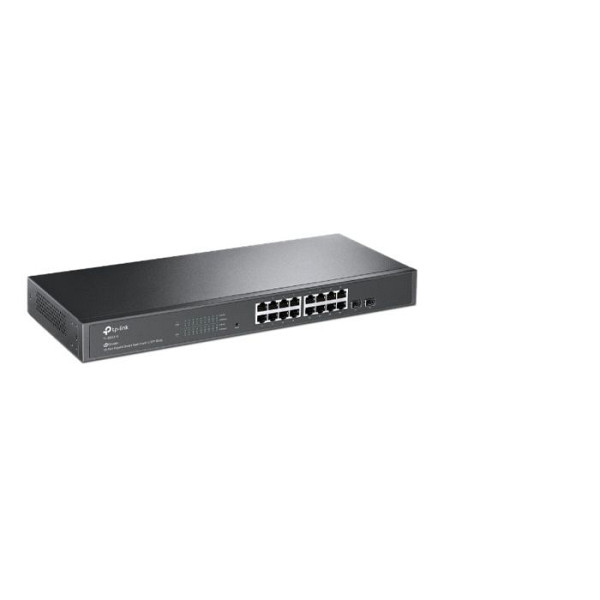

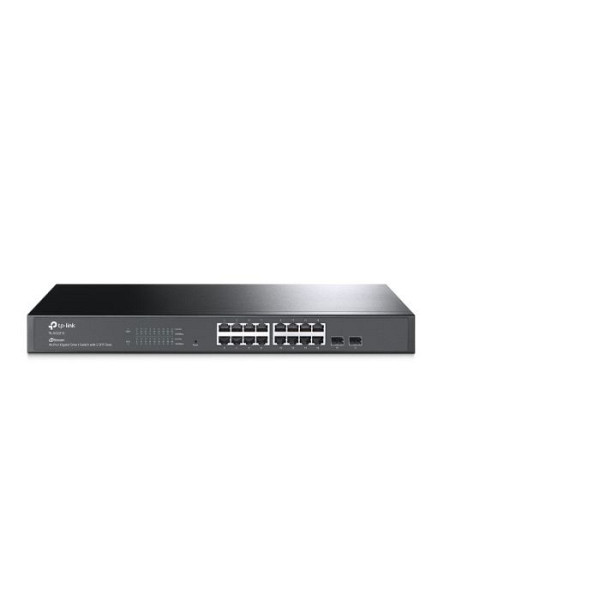

TP-LINK JetStream TL-SG2218 18-port 16x Gigabit RJ45 2x Gigabit SFP Smart mrežno stikalo switch

TP-LINK TL-SG2218 16-port gigabit 16?10/100/1000 Smart 2x SFP mrežno stikalo-switch ponuja odlične zmožnosti hitrega procesiranja podatkov skozi 16-portne gigabitne SFP reže. Mrežno stikalo ima centrilizirano upravljanje v oblaku in inteligentno spremljanje, saj je integriran v Omada SDN (ZTP). Uporablja se centralizirano upravljanje, preko oblaka in Omada aplikacije za neverjetno zanesljivo in enostavno upravljanje.

TP-LINK TL-SG2218 uporablja statično usmerjanje: pomaga usmerjati notranji promet za učinkovitejšo uporabo omrežnih virov.
Varnostne strategije: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication in še več.
Optimizirajte glasovne in video aplikacije: L2/ L3/ L4 QoS in IGMP.
Samostojno upravljanje: splet, CLI (Telnet, SSH), SNMP, RMON in Dual Image prinašajo zmogljivosti upravljanja.

Programsko definirano omrežje (SDN) z dostopom v oblaku
Omadina programsko definirana mreža (SDN) vključuje omrežne naprave, vključno z dostopnimi točkami, stikali in prehodi, kar zagotavlja 100% centralizirano upravljanje v oblaku. Omada ustvari zelo razširljivo omrež je, ki ga nadzoruje en sam vmesnik.

Napredne funkcije L3
Podprto je veliko funkcij L2 + in L3, ki pomagajo zgraditi zelo razširljivo in robustno omrežje, ki zagotavlja zanesljivo in učinkovito rešitev za podjetja, kampuse in ponudnike internetnih storitev.

Proizvajalčeva koda

TL-SG2218

Proizvajalčeva koda

TL-SG2218

EAN koda

6935364006419

EAN koda

6935364006419

Proizvajalec

TP-LINK

Proizvajalec

TP-LINK

razprodaja

No

razprodaja

No

Namestitev

rack

Namestitev

rack

Vrsta stikala

Smart

Vrsta stikala

Smart

Vmesniki

16x 10/100/1000 Mbps RJ45, 2x gigabit SFP

Vmesniki

16x 10/100/1000 Mbps RJ45, 2x gigabit SFP

Hitrost

10/100/1000 Mbps

Hitrost

10/100/1000 Mbps

Zmogljivost

prepustnost: 36 Gbps; število paketov na sekundo: 26,8 MBps

Zmogljivost

prepustnost: 36 Gbps; število paketov na sekundo: 26,8 MBps

Dimenzije

440 × 180 × 44 mm

Dimenzije

440 × 180 × 44 mm

Garancija

36 mesecev

Garancija

36 mesecev

Dodatno

Delovanje
Preklopna zmogljivost: 36 Gbps
Hitrost posredovanja paketov: 26,8 Mpps
Tabela naslovov: MAC 8K
Jumbo Frame: 9 KB

Programske lastnosti
802.1p CoS/DSCP priority
Queue scheduling
SP (Strict Priority)
WRR (Weighted Round Robin)
SP+WRR
Bandwidth Control
Port/Flow based Rating Limiting
Smoother Performance
Action for Flows
Mirror (to supported interface)
Redirect (to supported interface)
Rate Limit
QoS Remark

L2 and L2+ Features
Link Aggregation
Static link aggregation
802.3ad LACP
Up to 8 aggregation groups and up to 8 ports per group
Spanning Tree Protocol
802.1d STP
802.1w RSTP
802.1s MSTP
STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
Loopback Detection
Port-based
VLAN based
Flow Control
802.3x Flow Control
HOL Blocking Prevention
Mirroring
Port Mirroring
CPU Mirroring
One-to-One
Many-to-One
Tx/Rx/Both

L2 Multicast
Supports 511 (IPv4, IPv6) IGMP groups
IGMP Snooping
IGMP v1/v2/v3 Snooping
Fast Leave
IGMP Snooping Querier
IGMP Authentication
IGMP Authentication
MVR
MLD Snooping
MLD v1/v2 Snooping
Fast Leave
MLD Snooping Querier
Static Group Config
Limited IP Multicast
Multicast Filtering: 256 profiles and 16 entries per profile

VLAN
VLAN Group
Max 4K VLAN Groups
802.1q Tagged VLAN
MAC VLAN: 12 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
GVRP
VLAN VPN (QinQ)
Port-Based QinQ
Selective QinQ
Voice VLAN

Access Control List
Time-based ACL
MAC ACL
Source MAC
 Destination MAC
VLAN ID
User Priority
Ether Type
IP ACL
Source IP
Destination IP
Fragment
IP Protocol
TCP Flag
TCP/UDP Port
DSCP/IP TOS
User Priority
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
Mirroring
Redirect
Rate Limit
QoS Remark
ACL apply to Port/VLAN

Security
IP-MAC-Port Binding
DHCP Snooping
ARP Inspection
IPv4 Source Guard
IPv6-MAC-Port Binding
DHCPv6 Snooping
ND Detection
IPv6 Source Guard
DoS Defend
Static/Dynamic Port Security
Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
kbps/ratio/pps control mode
IP/Port/MAC based access control
802.1X
Port based authentication
Mac based authentication
VLAN Assignment
MAB
Guest VLAN
Support Radius authentication and
accountability
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2

IPv6
IPv6 Dual IPv4/IPv6
Multicast Listener Discovery (MLD) Snooping
IPv6 ACL
IPv6 Interface
Static IPv6 Routing
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications
DHCPv6 Client
Ping6
Tracert6
Telnet (v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP

L3 Features
16 IPv4/IPv6 Interfaces
Static Routing
48 static routes
Static ARP
316 ARP Entries
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
DHCP L2 Relay

Management
Web-based GUI
Command Line Interface (CLI) through console port, telnet
SNMPv1/v2c/v3
Trap/Inform
RMON (1, 2, 3, 9 groups)
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log

Advanced Features
Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
ZTP (Zero-Touch Provisioning)*

Dodatno

Delovanje
Preklopna zmogljivost: 36 Gbps
Hitrost posredovanja paketov: 26,8 Mpps
Tabela naslovov: MAC 8K
Jumbo Frame: 9 KB

Programske lastnosti
802.1p CoS/DSCP priority
Queue scheduling
SP (Strict Priority)
WRR (Weighted Round Robin)
SP+WRR
Bandwidth Control
Port/Flow based Rating Limiting
Smoother Performance
Action for Flows
Mirror (to supported interface)
Redirect (to supported interface)
Rate Limit
QoS Remark

L2 and L2+ Features
Link Aggregation
Static link aggregation
802.3ad LACP
Up to 8 aggregation groups and up to 8 ports per group
Spanning Tree Protocol
802.1d STP
802.1w RSTP
802.1s MSTP
STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
Loopback Detection
Port-based
VLAN based
Flow Control
802.3x Flow Control
HOL Blocking Prevention
Mirroring
Port Mirroring
CPU Mirroring
One-to-One
Many-to-One
Tx/Rx/Both

L2 Multicast
Supports 511 (IPv4, IPv6) IGMP groups
IGMP Snooping
IGMP v1/v2/v3 Snooping
Fast Leave
IGMP Snooping Querier
IGMP Authentication
IGMP Authentication
MVR
MLD Snooping
MLD v1/v2 Snooping
Fast Leave
MLD Snooping Querier
Static Group Config
Limited IP Multicast
Multicast Filtering: 256 profiles and 16 entries per profile

VLAN
VLAN Group
Max 4K VLAN Groups
802.1q Tagged VLAN
MAC VLAN: 12 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
GVRP
VLAN VPN (QinQ)
Port-Based QinQ
Selective QinQ
Voice VLAN

Access Control List
Time-based ACL
MAC ACL
Source MAC
 Destination MAC
VLAN ID
User Priority
Ether Type
IP ACL
Source IP
Destination IP
Fragment
IP Protocol
TCP Flag
TCP/UDP Port
DSCP/IP TOS
User Priority
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
Mirroring
Redirect
Rate Limit
QoS Remark
ACL apply to Port/VLAN

Security
IP-MAC-Port Binding
DHCP Snooping
ARP Inspection
IPv4 Source Guard
IPv6-MAC-Port Binding
DHCPv6 Snooping
ND Detection
IPv6 Source Guard
DoS Defend
Static/Dynamic Port Security
Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
kbps/ratio/pps control mode
IP/Port/MAC based access control
802.1X
Port based authentication
Mac based authentication
VLAN Assignment
MAB
Guest VLAN
Support Radius authentication and
accountability
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2

IPv6
IPv6 Dual IPv4/IPv6
Multicast Listener Discovery (MLD) Snooping
IPv6 ACL
IPv6 Interface
Static IPv6 Routing
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications
DHCPv6 Client
Ping6
Tracert6
Telnet (v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP

L3 Features
16 IPv4/IPv6 Interfaces
Static Routing
48 static routes
Static ARP
316 ARP Entries
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
DHCP L2 Relay

Management
Web-based GUI
Command Line Interface (CLI) through console port, telnet
SNMPv1/v2c/v3
Trap/Inform
RMON (1, 2, 3, 9 groups)
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log

Advanced Features
Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
ZTP (Zero-Touch Provisioning)*

Varnost

TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect

Varnost

TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect

polna gigabitna vrata

16 gigabitna vrata RJ45 in 2 gigabitna SFP reža zagotavljajo hitre povezave.

polna gigabitna vrata

16 gigabitna vrata RJ45 in 2 gigabitna SFP reža zagotavljajo hitre povezave.

integrirano v omada sdn

Zero-Touch Provisioning (ZTP)*, centralizirano upravljanje v oblaku in inteligentno spremljanje.

integrirano v omada sdn

Zero-Touch Provisioning (ZTP)*, centralizirano upravljanje v oblaku in inteligentno spremljanje.

centralizirano upravljanje

dostop do oblaka in aplikacija Omada za izjemno udobje in enostavno upravljanje.

centralizirano upravljanje

dostop do oblaka in aplikacija Omada za izjemno udobje in enostavno upravljanje.

statično usmerjanje

Pomaga pri usmerjanju notranjega prometa za učinkovitejšo uporabo omrežnih virov.

statično usmerjanje

Pomaga pri usmerjanju notranjega prometa za učinkovitejšo uporabo omrežnih virov.

robustne varnostne strategije

vezava IP-MAC-vrata, ACL, varnost vrat, zaščita pred Do

robustne varnostne strategije

vezava IP-MAC-vrata, ACL, varnost vrat, zaščita pred Do

optimizirajte glasovne in video aplikacije

L2/L3/L4 Qo

optimizirajte glasovne in video aplikacije

L2/L3/L4 Qo

samostojno upravljanje

splet, CLI (Telnet, SSH), SNMP, RMON in dvojna slika prinašajo zmogljive zmožnosti upravljanja.

samostojno upravljanje

splet, CLI (Telnet, SSH), SNMP, RMON in dvojna slika prinašajo zmogljive zmožnosti upravljanja.

- varnost stp

TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect

- varnost stp

TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect

multicast filtriranje

256 profilov in 16 vnosov na profil

multicast filtriranje

256 profilov in 16 vnosov na profil

mac vlan

12 vnosov

mac vlan

12 vnosov

protokol vlan

Protocol Template 16, Protocol VLAN 16

protokol vlan

Protocol Template 16, Protocol VLAN 16

delovna temperatura

0 40 ℃ (32 104 ℉);

delovna temperatura

0 40 ℃ (32 104 ℉);

temperatura shranjevanja

-40 70 ℃ (-40 158 ℉)

temperatura shranjevanja

-40 70 ℃ (-40 158 ℉)

delovna vlažnost

10 90 % RH brez kondenzacije

delovna vlažnost

10 90 % RH brez kondenzacije

vlažnost pri shranjevanju

5 90 % RH brez kondenzacije

vlažnost pri shranjevanju

5 90 % RH brez kondenzacije

uradna stran proizvajalca

https://www.tp-link.com/us/business-networking/smart-switch/tl-sg2218/#overview

uradna stran proizvajalca

https://www.tp-link.com/us/business-networking/smart-switch/tl-sg2218/#overview
